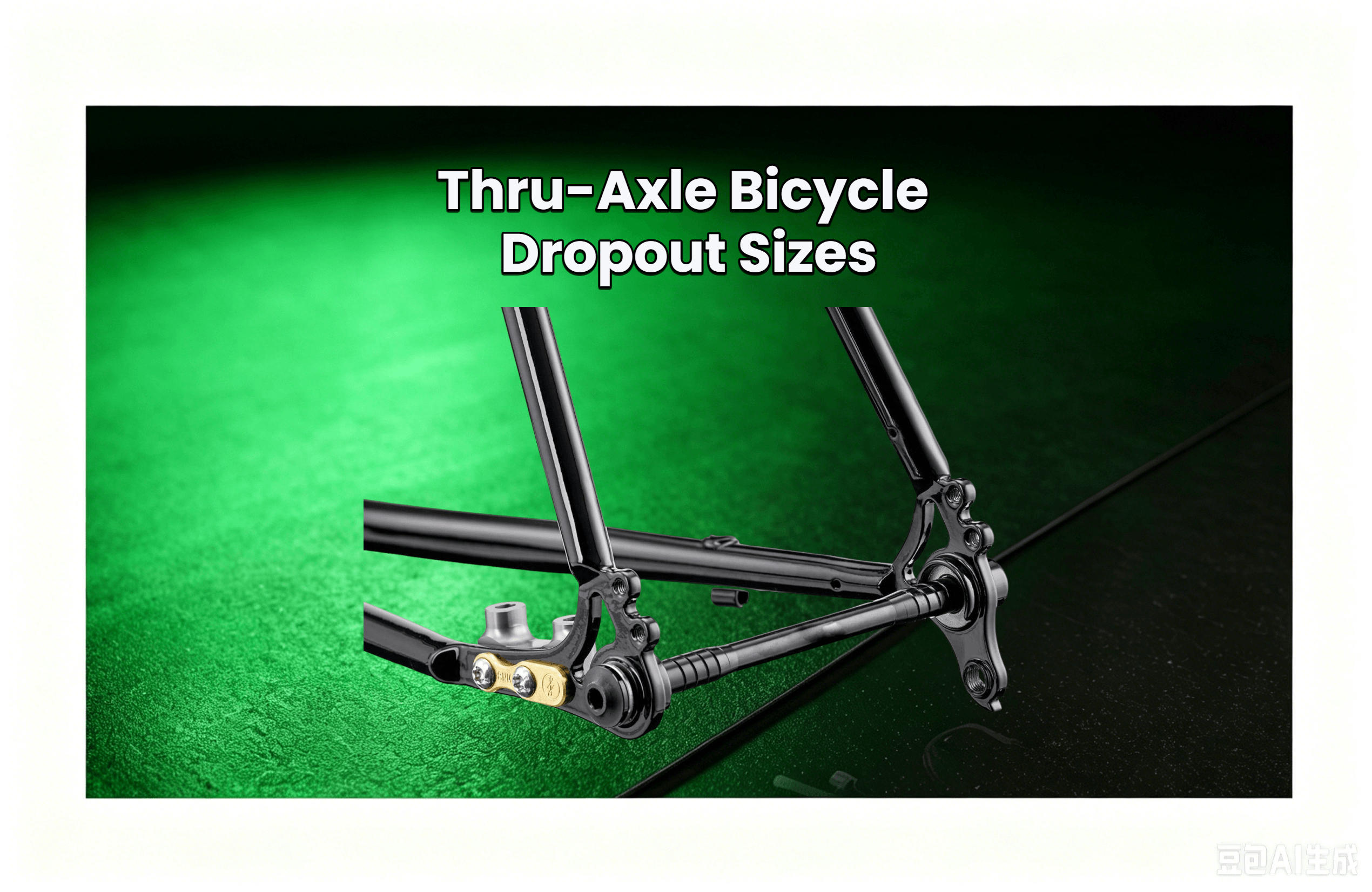

The Bike Trainer Tips 02： Thru-Axle Bicycle Dropout Sizes
Thru Axle Specifications & Trainer Adapter Selection Guide
A complete reference for bike thru-axle standards — understand rear dropout sizes (142mm vs 148mm Boost), front axle specs, and how to choose the correct trainer adapter for your bike.

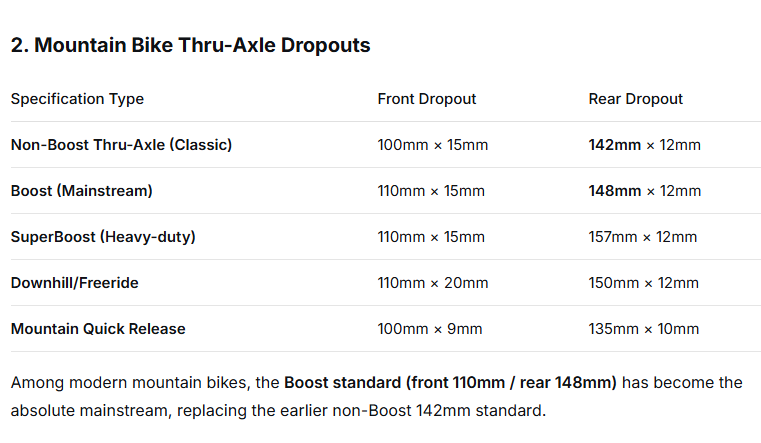

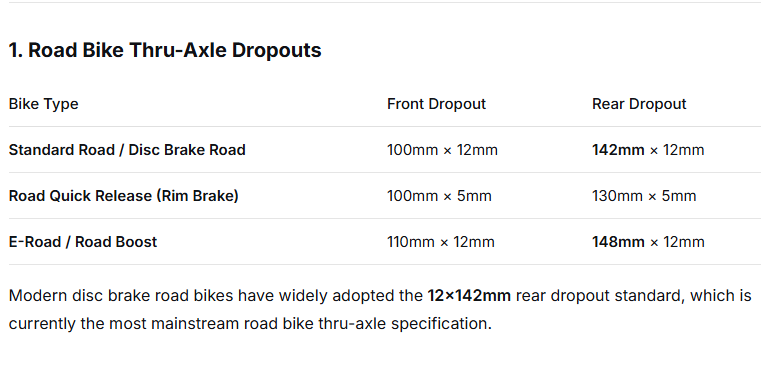

Thru Axle Reference Images

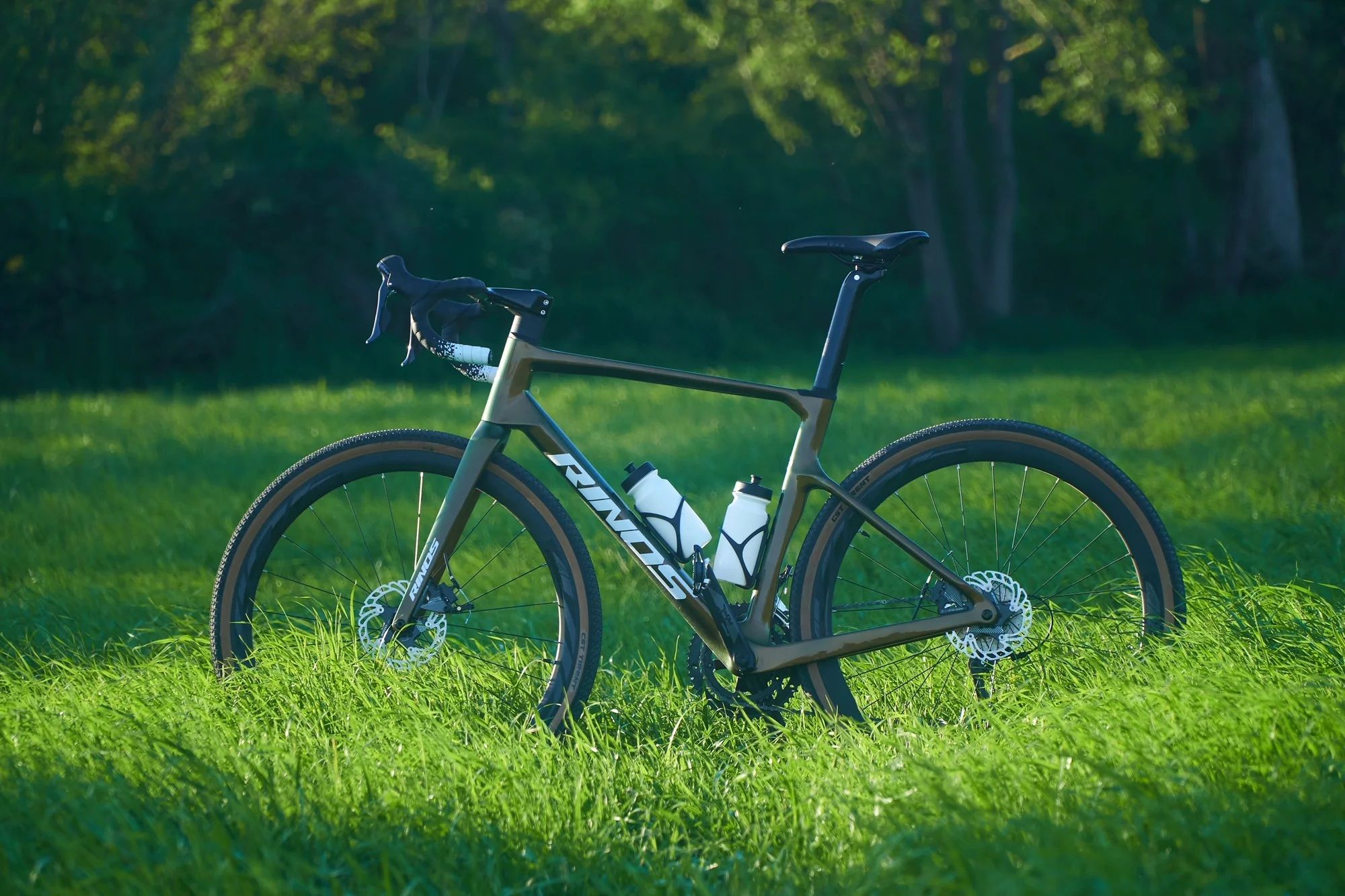

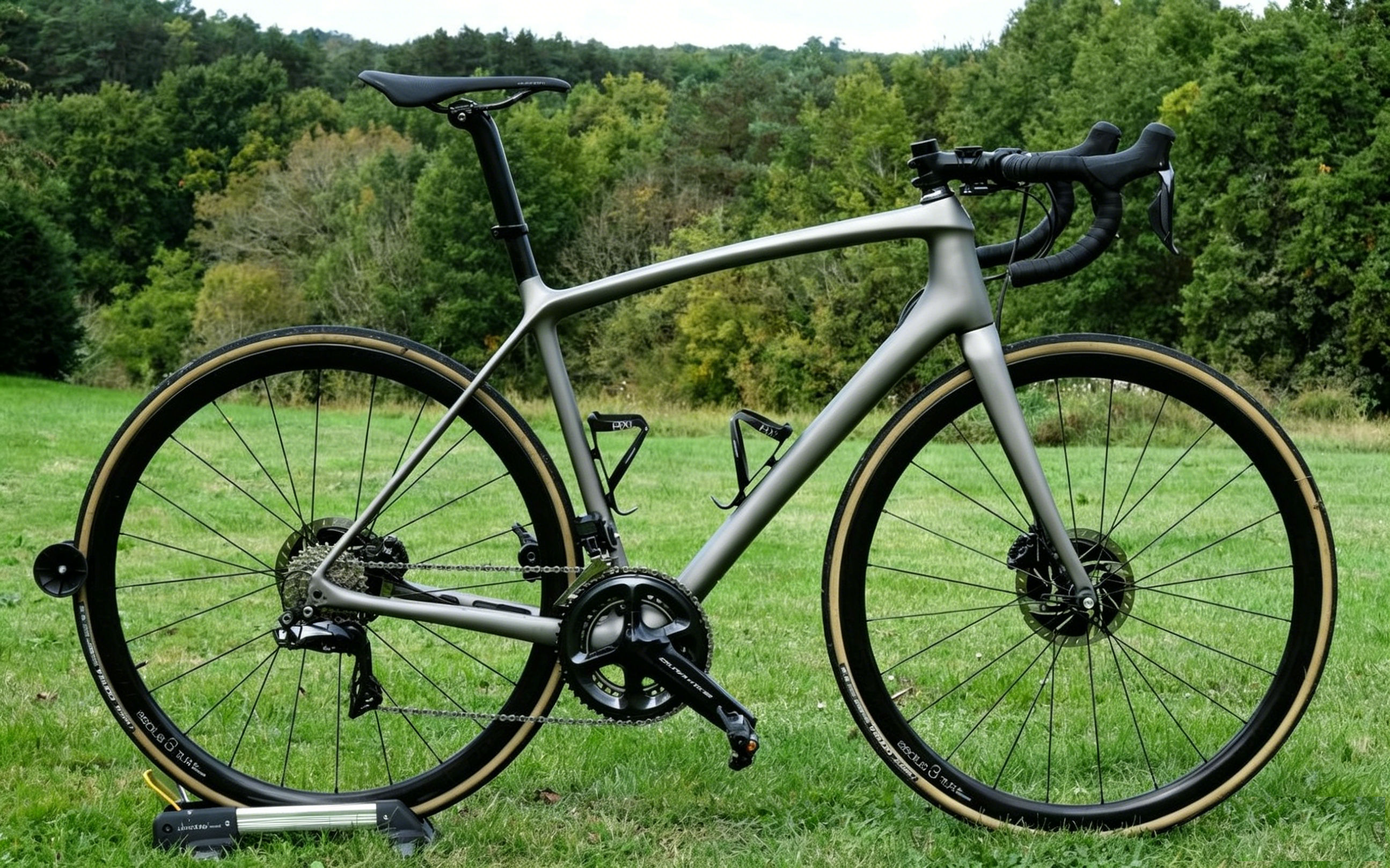

Below are visual references for road bike and mountain bike thru-axle configurations to help you identify your bike's setup.
Selection Reminders
🔍 Step 1: Confirm Your Bike's Specifications
Check the frame dropout area or refer to the user manual. You can also measure your original thru-axle length directly.
- A 148mm Boost wheel cannot fit into a 142mm frame.
- Installing a 142mm wheel into a 148mm frame requires an adapter spacer.
Some road bikes and mountain bikes feature front thru-axles, typically with dropout sizes of 100mm or 110mm (Boost). Make sure to check your front axle as well if you plan to use a front-wheel trainer or need a front adapter.
The trainer-specific thru-axle adapter needs to match your bike frame's rear dropout size — either 142mm (standard road/MTB) or 148mm (Boost). Always double-check before ordering.

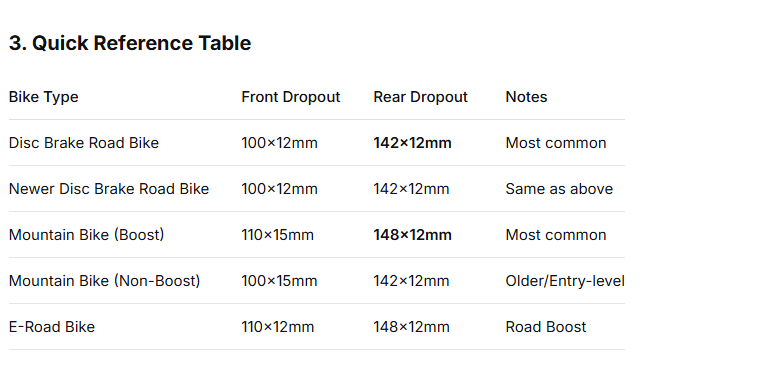

📌 Quick Reference Checklist
- Rear dropout: 142mm (standard) or 148mm (Boost) — must match your trainer adapter
- Front dropout: 100mm (standard) or 110mm (Boost) — check if using front-wheel trainer
- Boost wheels (148mm) will not fit in 142mm frames
- Non-Boost wheels (142mm) can fit in 148mm frames only with a spacer
- Always measure your original axle or check the frame/user manual for accurate specs
